PLANET mrežni preklopnik 4-port 10/100TX 802.3at PoE + 2-port 10/100TX

– Centralized Power Distribution for HD IP Surveillance System
* PLANET FSD-604HP Desktop Switch provides four 802.3at PoE+ ports for catering to small-scale IP surveillance networks at a lower total cost
* With dual 10/100BASE-TX uplink ports, the recorded HD video files from the 4 PoE IP cameras powered by the FSD-604HP are saved in the 4-channel NVR system
* Its surveillance software performs comprehensive security monitoring and manages the surveillance system in the local LAN or remote site via Internet
– 4-port PoE, 60-watt PoE budget
– Two 10/100Mbps uplink ports

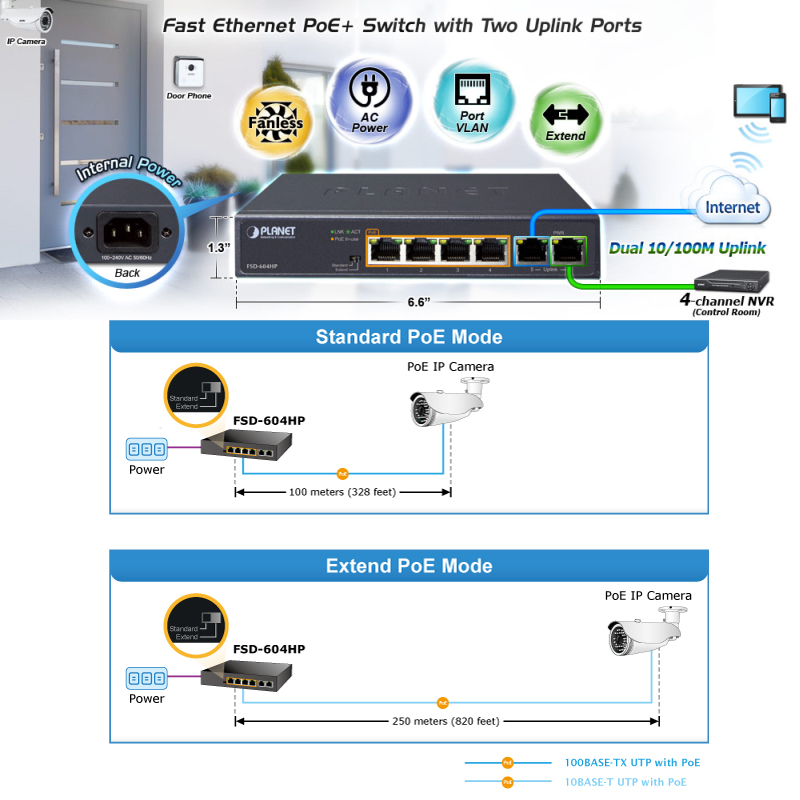

– Can extend distance of up to 250m in the extend mode
– 30-watt power output at speed of 10Mbps
– Internal AC power, fanless design
– Innovative Port-based VLAN Protection
– Distance Extended for Transmission of Power and Data
– Robust Protection
– Environment-friendly, Fanless Design for Silent Operation
– Easy Cable Connection

Specifications
HARDWARE SPECIFICATIONS
– Network Connector: 6-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
– PoE Inject Port: 4-port with 802.3af/at PoE injector function (Port-1 to Port-4)
– LED Display:
* System: Power (Orange)
* Per PoE port: PoE (Orange, Port 1 to Port 4), LNK/ACT (Green, Port 1 to Port 6)
– DIP Switch:
* 100m distance in standard mode
* 250m distance in extend mode (based on the cable category)
– Switch Architecture: Store and Forward switch architecture
– MAC Address Table: 2K MAC address table with auto learning function
– Switch Fabric: 1.2Gbps
– Switch Throughput: 0.89Mpps @64bytes
– Maximum Packet Size: 1536bytes
– Flow Control: Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
– Power Requirements: AC 100-240V, 2A max.
– Power Consumption: Max. 63 watts, 214 BTU
– Dimensions (W×D×H): 168×93×32 mm
– Weight: 499g
– ESD Protection:
* Contact discharge of +/-4KV DC
* Air discharge of +/-6KV DC
– Surge Immunity: +/-4KV

POWER OVER ETHERNET
– PoE Standard:
* IEEE 802.3af Power over Ethernet/PSE
* IEEE 802.3at Power over Ethernet Plus/PSE
– PoE Power Supply Type: End-span
– Power Pin Assignment: 1/2(+), 3/6(-)
– PoE Power Output:
* Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
* Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
– PoE Power Budget : 0 watts
– Number of PDs, 7 watts: 4
– Number of PDs, 15.4 watts: 4
– Number of PDs, 30 watts: 2

STANDARD CONFORMANCE
– EMI Safety: CE, FCC
– Standard Compliance:
* IEEE 802.3 Ethernet
* IEEE 802.3u Fast Ethernet
* IEEE 802.3x Flow Control
* IEEE 802.3af Power over Ethernet
* IEEE 802.3at Power over Ethernet Plus

ENVIRONMENT
– Operating Environment: 0 to 50 degrees C
– Storage Environment: -10 to 70 degrees C
– Operating Humidity: 5 to 95%, relative humidity, non-condensing
– Storage Humidity: 5 to 95%, relative humidity, non-condensing
