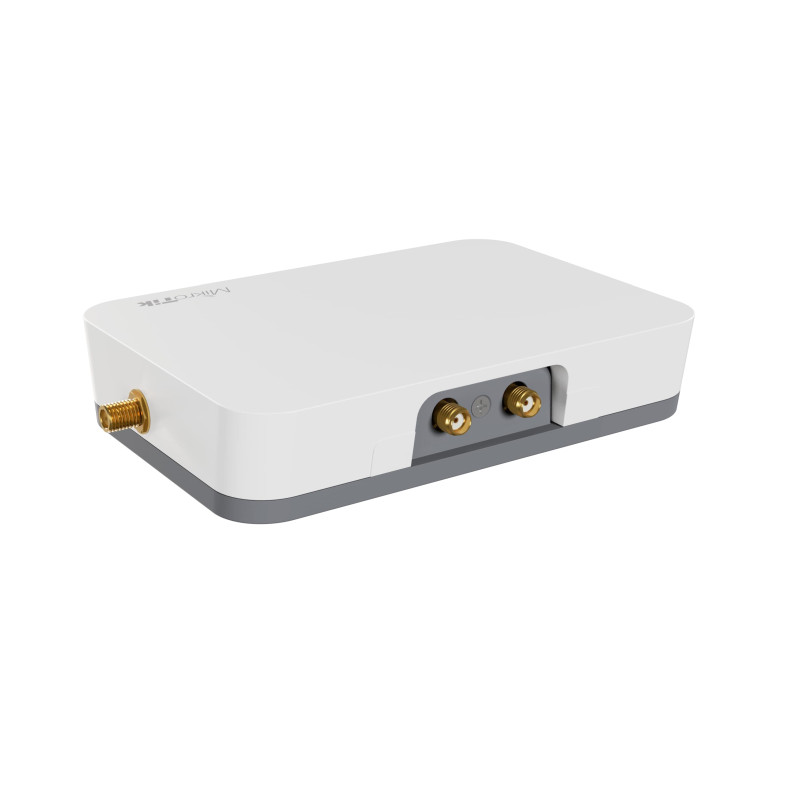

Mikrotik KNOT LR8 kit – IoT Gateway, 650MHz CPU, 64MB RAM, 2×10/100Mbps (PoE-in/PoE-out) 2.4Ghz 802.11b/g/n Dual Chain, R11e-LoRa8 card (863-870MHz 14dBm), BT5.2, GPS, microUSB, RouterOS L4

– An out-of-the-box 863-870 MHz IoT Gateway solution for LoRa® technology. For ultimate versatility and cost-effectiveness. The first gateway with a CAT-M interface for LoRa!

– We all know the struggle of managing so many devices with different interfaces and communication protocols.. You keep adding new solutions to your setup to keep up, but the older devices are still too good to let them go. How do you integrate all of them in a single system that will serve you right? Easy – you “tie” them together by using the KNOT!

– It doesn’t matter whether you have devices that are no longer in production, devices that came out this year, or even some custom solutions by your technician – the KNOT can handle them all!

– KNOT LR8 kit is an out-of-the-box IoT Gateway solution for LoRa® technology. It uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers. With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.

– It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and moisture sensors with only a few megabytes per day!

– KNOT features so many protocol support and connectivity options: 2.4 GHz wireless, Bluetooth, GPS, LoRa®, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

– With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format. It has powerful filters for forwarding only relevant packets and ignoring others.

– This kit can even help you in the most unusual situations. Remember the part about onboard GPIOs? Those pins can be used to read all kinds of analog sensors, interact with a single-board computer or other custom electronics – hobbyist kits, D.I.Y. robotics… It’s like getting the whole Swiss Army instead of a Swiss Army knife!

– KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.

– Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!

Specifications
Details
– Product code: RB924iR-2nD-BT5&BG77&R11e-LR8
– Architecture: MIPSBE
– CPU: QCA9531
– CPU core count: 1
– CPU nominal frequency: 650 MHz
– Switch chip model: QCA9531
– RouterOS license: 4
– Operating System: RouterOS
– Size of RAM: 64 MB
– Storage size: 128 MB
– Storage type: NAND
– MTBF: Approximately 200’000 hours at 25C
– Tested ambient temperature: -40°C to 70°C

Powering
– MicroUSB input Voltage: 5 V
– Number of DC inputs: 3 (MicroUSB, DC jack, PoE-IN)
– DC jack input Voltage: 12-57 V
– Max power consumption: 23 W
– Max power consumption without attachments: 5 W
– Cooling type: Passive
– PoE in: 802.3af/at
– PoE in input Voltage: 18-57 V

PoE-out
– PoE-out ports: Ether2
– PoE out : 802.3af/at
– Max out per port output (input 18-30 V): 650 mA
– Max out per port output (input 30-57 V): 450 mA

Wireless specifications
– Wireless 2.4 GHz Max data rate: 300 Mbit/s
– Wireless 2.4 GHz number of chains: 2
– Wireless 2.4 GHz standards: 802.11b/g/n
– Antenna gain dBi for 2.4 GHz: 1.5
– Wireless 2.4 GHz chip model: QCA9531
– Wireless 2.4 GHz generation: Wi-Fi 4

Ethernet
– 10/100 Ethernet ports 2

Peripherals
– Number of SIM slots: 1 Modem (Nano SIM)
– MiniPCI-e slots: 1
– Serial console port: RS485
– Number of USB ports: 1
– USB slot type: micro: USB type AB
– Max USB current (A): 1

Other
– PCB temperature monitor: Yes
– Voltage Monitor: Yes
– Bluetooth version: 5.2
– Bluetooth RF connector type: uUFL

Certification & Approvals
– Certification: CE, EAC, ROHS
– IP: 20

Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
