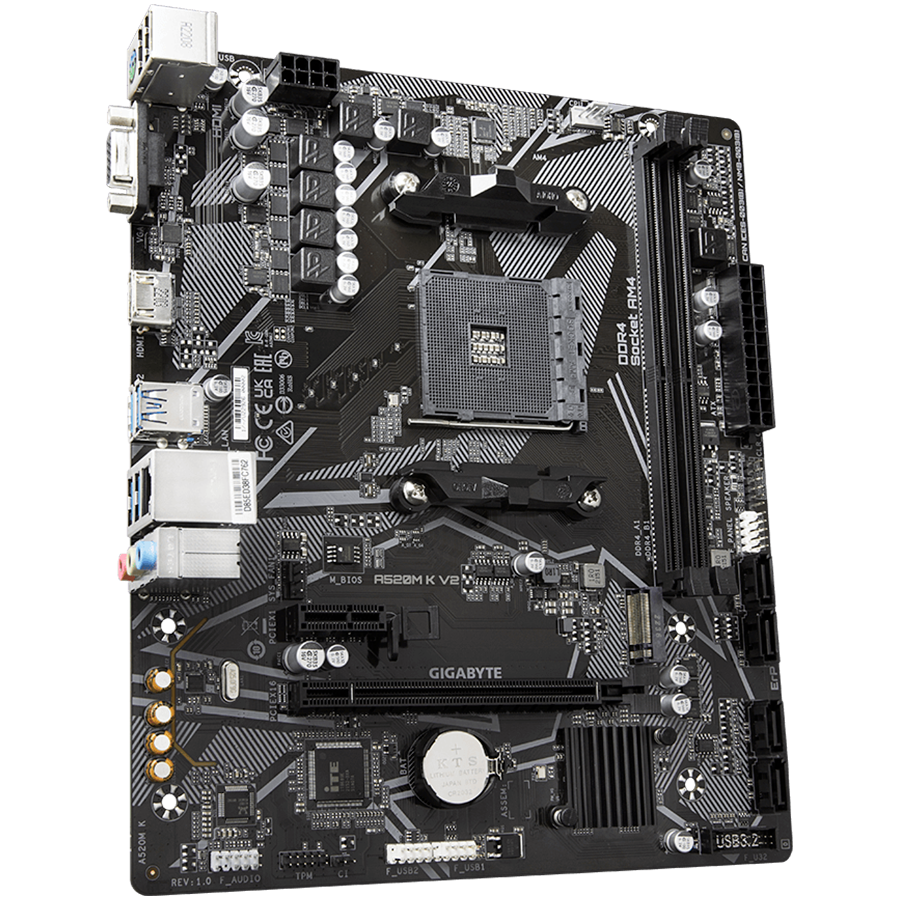

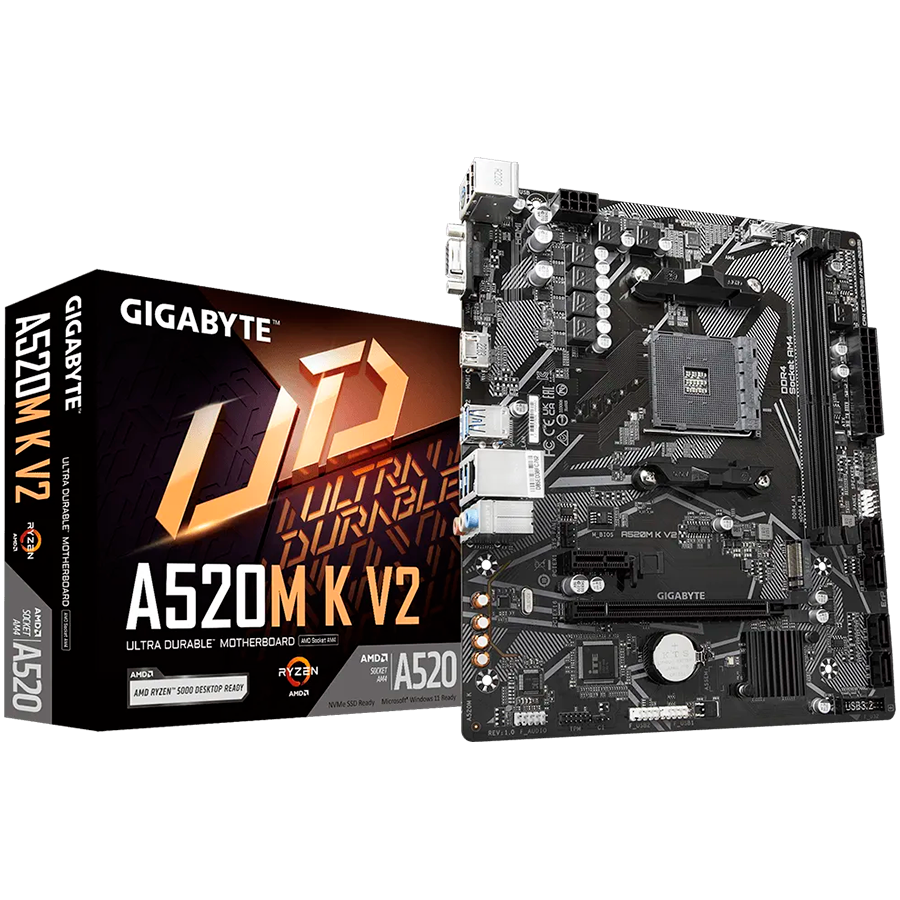

GIGABYTE MainBoard A520M K (AM4, 2x DDR4, 1x M.2, 4x SATA, 1x HDMI, 1x PCI Express x16 3.0, , 1x PCI Express x1 3.0, 6x USB 3.2 Gen1, 6x USB 2.0/1.1, GLAN) mATX

Chipset AMD A520
CPU podrška AMD Ryzen Series 3rd Generation
AMD Ryzen Series 4th Generation
AMD Ryzen Series 5th Generation
CPU podnožje Socket AM4
CPU Max. količina 1
Vrsta memorije DDR4 SDRAM
Format memorije DIMM 288-pin
Brzina memorije 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Max. kapacitet memorije 64 GB
Količina utora 2
Provjera pogrešaka non-ECC
Značajke memorije Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
Integriran Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1
SATA III-600 (4)

Integrirani audio Da
Vrsta Integriran
Audio izlaz 7.1 Channel Surround
Audio standard HD audio
Integrirani LAN Da
Podržana brzina Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express 3.0 x16 1
PCI Express 3.0 x1 1
PS/2 1
VGA 1 (15-pin D-sub)
HDMI 1 (HDMI (Type A))
USB 3.2 Gen 1 4 (USB 3.2 (type A))
USB 2.0 2 (USB 2.0 (type A))
LAN 1 (RJ-45)
Audio izlaz 3 (3.5-mm minijack)
BIOS Gigabyte Q-Flash
Gigabyte Xpress Install
WfM 2.0 Support
PnP 1.0a Support
SMBIOS 2.7 Support
128 Mb Flash ROM
DMI 2.7 Support
ACPI 5.0 Support
Power Connectors Type 24+8 pin
Softver Norton Internet Security (OEM version)
Podržani operativni sustavi Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Format Micro ATX
Visina (mm) 198 mm
Širina (mm) 233 mm
Jamstvo u Hrvatskoj Da
Jamstveni rok (mjeseci) 36 mjeseci(a)
Validacija jamstva Serijski broj
Bruto težina (kg) 0.65 kg
Neto težina (kg) 0.5 kg
Količina u pakiranju 1
Bruto težina kutije (kg) 10 kg
Težina kartona 0.2 kg
Težina plastike 0.2 kg
Količina u kutiji 10
Vrsta pakiranja Maloprodajno
EAN kod 4719331852771
