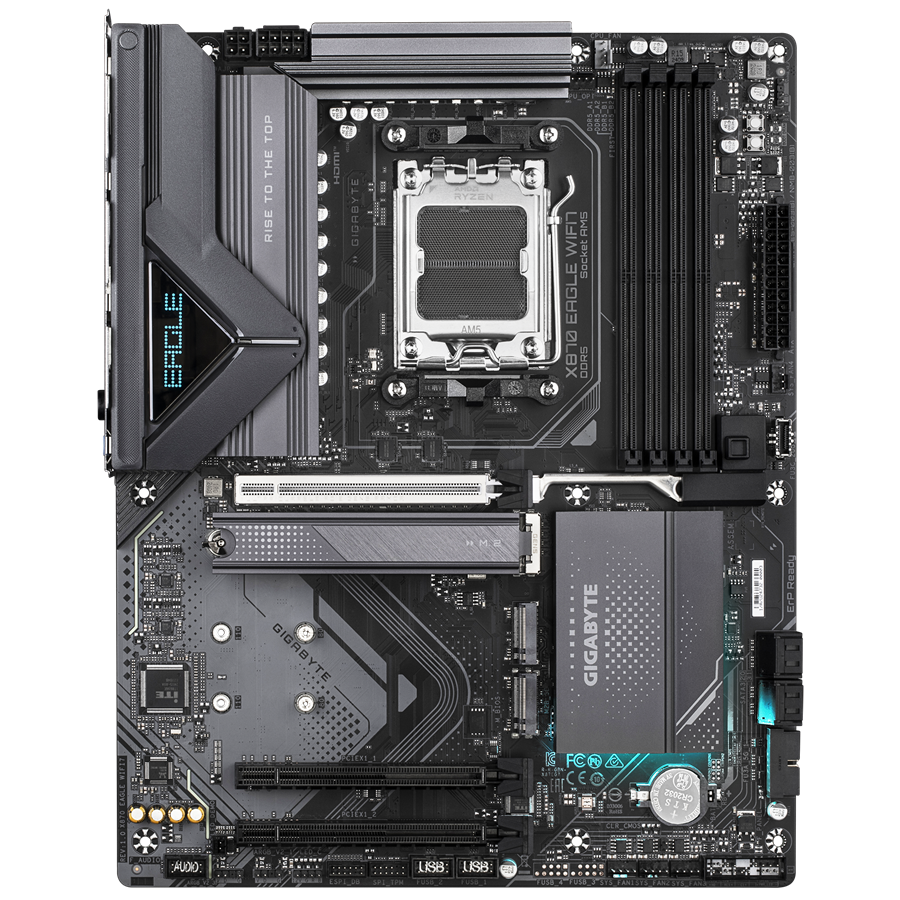

GIGAYBTE Mainboard Desktop X870 EAGLE WIFI7 (AM5, 4x DDR5 256GB, 1x PCI-E 5.0 x16x16, 2x PCI-E 3.0 x16x1, 1x PCI-E M.2, 2x M.2, 4x SATA, 2x USB4 Type-C DP, 4x USB 3.2, 1x HDMI, WiFi7, 2.5GbE LAN, ATX)

Chipset AMD X870
CPU podrška AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series
CPU podnožje Socket AM5
CPU Max. količina 1
Vrsta memorije DDR5 SDRAM
Format memorije DIMM 288-pin
Brzina memorije 8200MHz
Max. kapacitet memorije 256 GB
Količina utora 4
Provjera pogrešaka Non-ECC
Značajke memorije Two DDR Channels
Unbuffered
Dual Rank
Single Rank
AMD EXPO
Integriran Storage Controller:
PCI Express 5.0 x4 (1 x M.2)
Storage Controller:
PCI Express 4.0 x2 (1 x M.2)
Storage Controller:
PCI Express 4.0 x4 (1 x M.2)
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)

Plug-in-card Wi-Fi Controller:
1 x M.2 (Key E)

Integrirani video kontroler Da
Model AMD Radeon
Integrirani audio Da
Vrsta Integriran
Audio izlaz 7.1 Channel Surround
Audio standard HD audio
Integrirani LAN Da
Wi-Fi IEEE 802.11be Wi-Fi 7
Bluetooth Bluetooth 5.4
Podržana brzina 2.5 Gbps
PCI Express 5.0 x16 1
PCI Express 3.0 x16 2
HDMI 1 (HDMI (Type A))
USB 4.0 2 (USB 4.0 (type C))
USB 3.2 Gen 2 1 (USB 3.2 (type A))
USB 2.0 4 (USB 2.0 (type A))
LAN 1 (RJ-45)
USB 3.2 Gen 1 3 (USB 3.2 (type A))
Antenna 2
Audio izlaz 3 (3.5-mm minijack)
BIOS vrsta AMI
BIOS Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM
Softver Norton Internet Security (OEM version)
Podržani operativni sustavi Microsoft Windows 11 64-bit
Dodaci Brzi priručnik
Format ATX
Visina (mm) 244 mm
Širina (mm) 305 mm
Jamstvo u Hrvatskoj Da
Jamstveni rok (mjeseci) 36 mjeseci(a)
Validacija jamstva Serijski broj
Bruto težina (kg) 1.4 kg
Neto težina (kg) 1.2 kg
Količina u pakiranju 1
Bruto težina kutije (kg) 14 kg
Težina kartona 0.3 kg
Težina plastike 0.1 kg
Količina u kutiji 10
Vrsta pakiranja Maloprodajno
EAN kod 4719331864996
